*Plastic part name: Top and bottom covers
*Application：GPS and CAN modules
*A cover: PC material, blueish gray transparent color
B bottom cover: ABS/PC material, black color / blueish gray transparent color ( to leave light guides away from inside PCB's)
*GPS part size: Top 43x43x11mm Bottom 46x46x6mm
CAN part size: Top 99x43x21mm Bottom 99x42x17mm
*Mold cavities: 1x1+1x1+1x1+1x1
*Two parts that will be snapped together
*As to CAN covers, same A cover is also used for two kinds of low volume products, 3 different connector openings and symbols/text are in B-cover. Instead of two side action parts(slides), using one side action part for both high volume and low volume B-covers, 2 additional different connector openings of low volume B cover will be shaped by two extra inserts on this side action part. While the 2 additional openings are not needed, 2 inserts will not be installed, there will be slight outline trace left on B cover at the original positons of 2 openings , the surface is flat on the whole.
*What customer say: "Thank´s for the latest samples. (Fastened) Tightness is ok and they are rigid when closed.

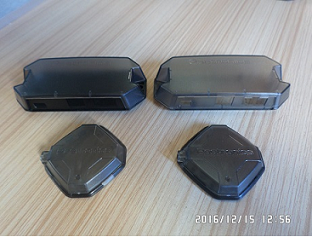

...(transparent gray color is chosen for this lot of top & bottom covers for both kinds of modules) ... after first production shot is made we need two more side actions (slider varation) for connector openings in "CAN to CAN" B-cover, those will be named as "Tachonode" and "CAN BUS trip gate"." --- 20th Jan,2017
...We have started to deliver products with new enclosures and we expect new deals to be realized as soon as possible...We are pleased to cooperate with you..." ---21st Aug., 2017
For above photos

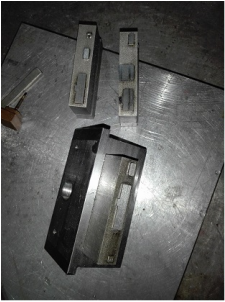

*Left side(8th Mar., 2017):
Top: exchangable inserts CAN BUS(C version) & CAN to CAN
Bottom: slider with Tachonode(B version) insert on it

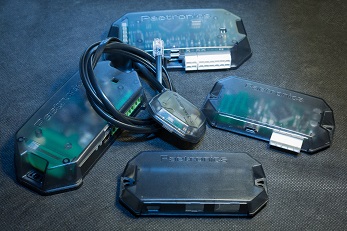

*Right side(9th Nov., 2017): Assembled modules
)

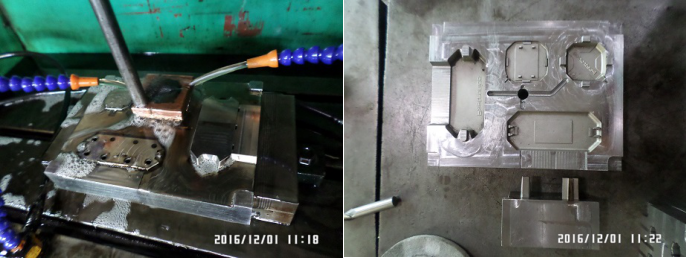

Core part of mold under CNC processing(left) ; Cavity part of mold(right)
