-Part name: enclosure
-In material: ABS
-Plastic mold:
1x1 cavity
3-plate mold(pin-point gate)

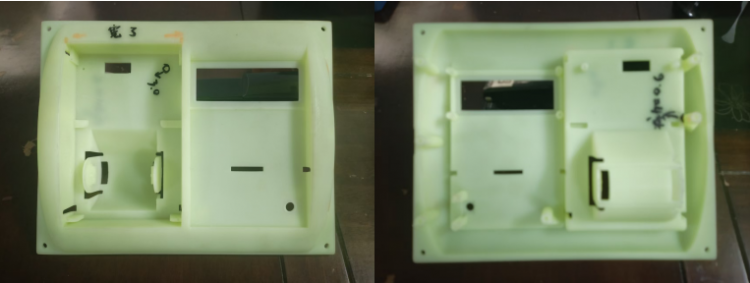

-3D printing prototype for verifying the 'STP' drawing obtained from original enclosure

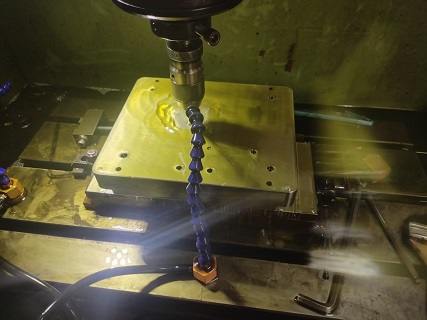

-Core component under EDM machining

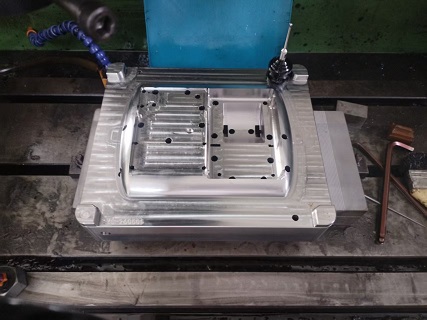

-Cavity component ready for EDM machining

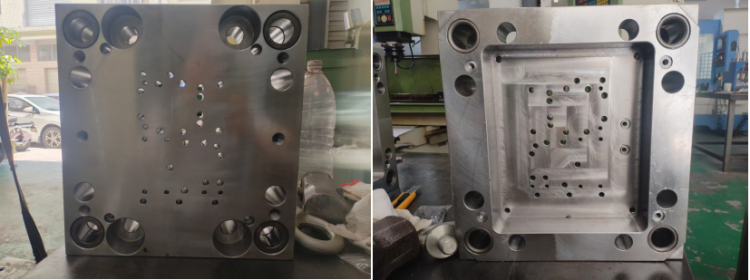

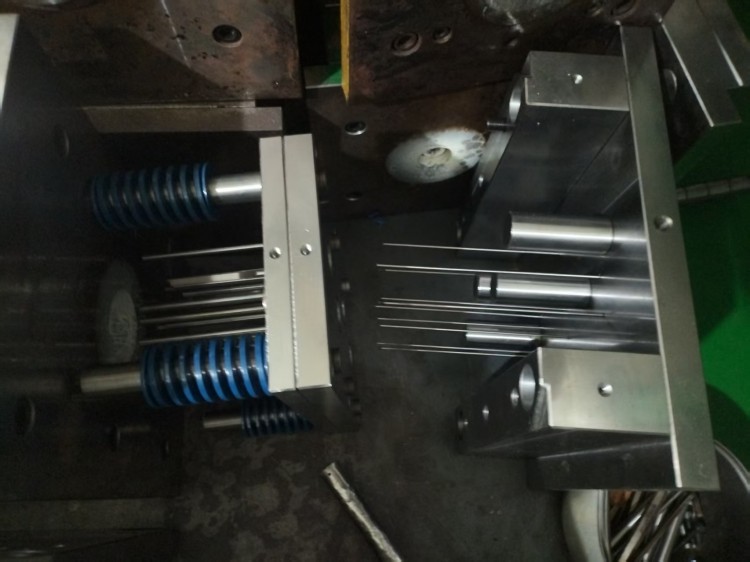

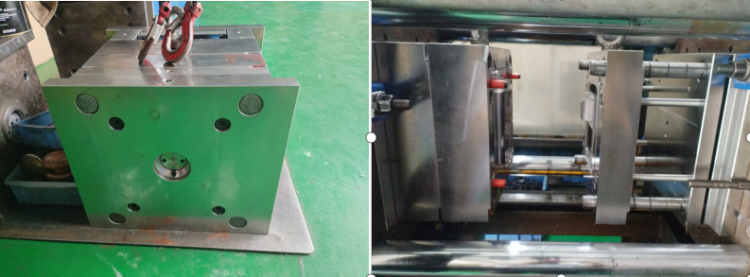

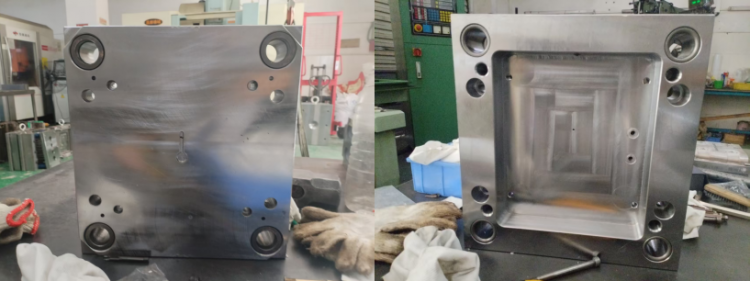

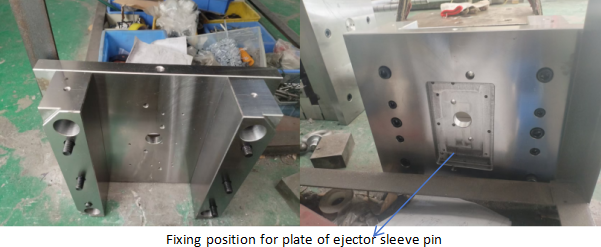

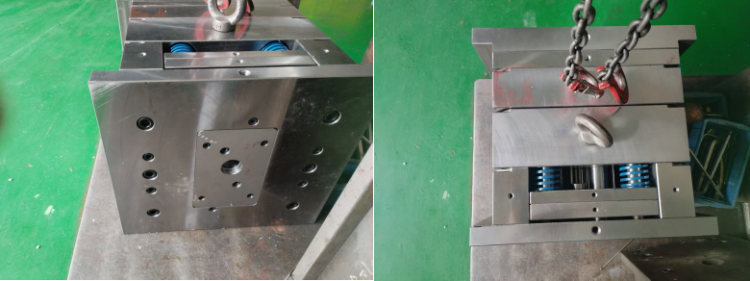

Overview of main components of mold base as of Jun. 4, 2026:
-A plate
-B plate

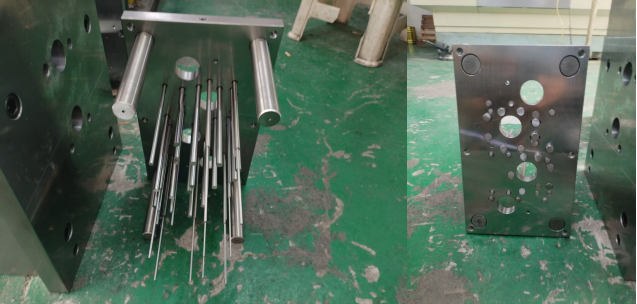

-Ejector plate
-Bottom clamp plate

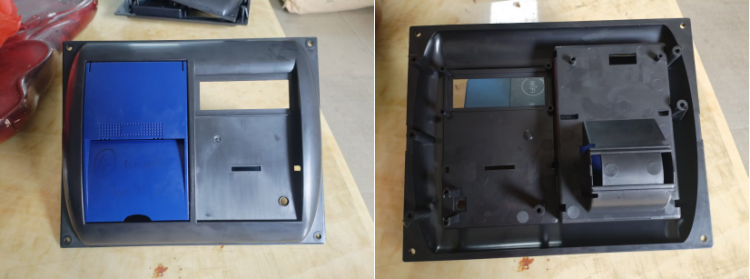

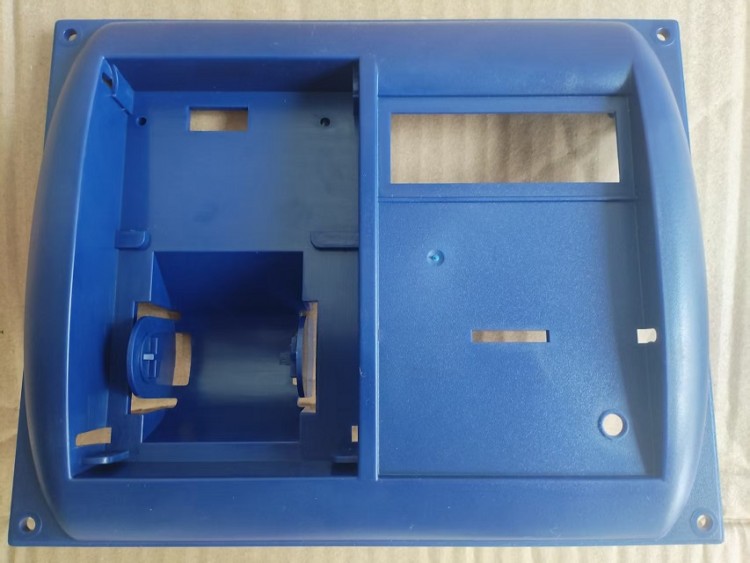

Enclosure(w/o blue color and texture) from 1st test:

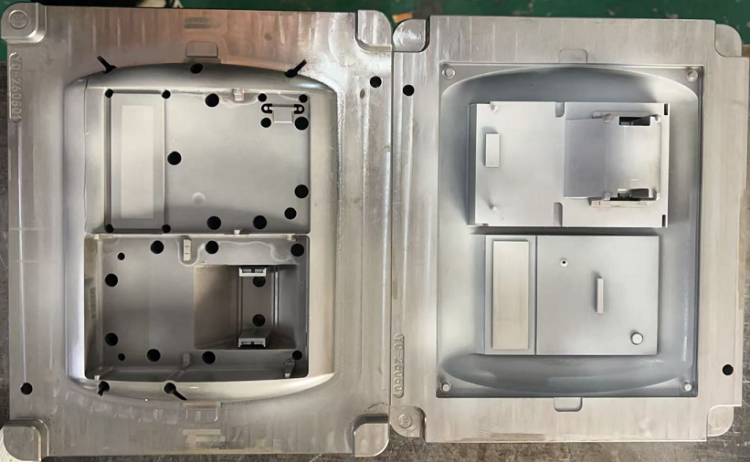

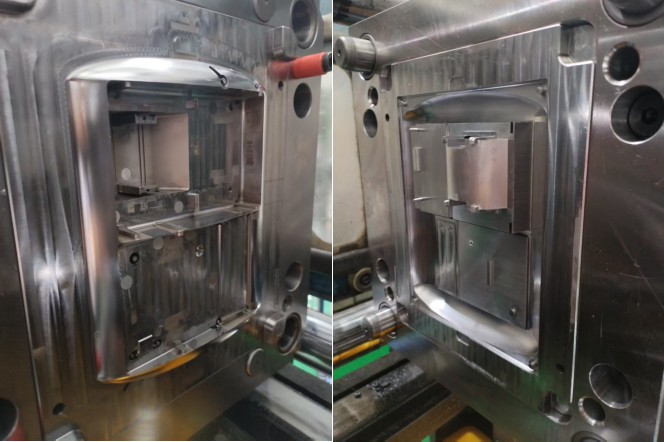

- Cavity and core components with texture eroded (w/ rust protective oil sprayed on the surface)

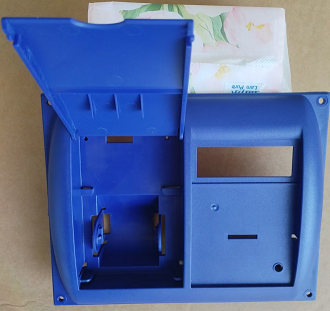

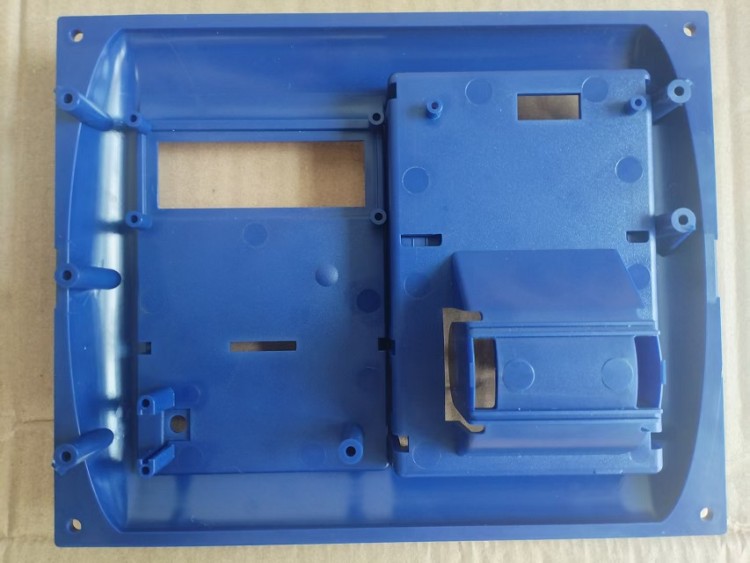

- Enclosure (w/ blue color and texture) from second time mold test

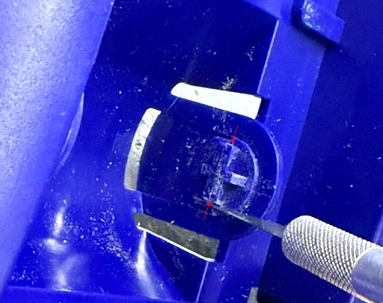

-Paper roll holder: movement of paper roll is a bit tight and does not roll freely, especially in the case when the core is cardboad instead of plastic, it gets damp over time.

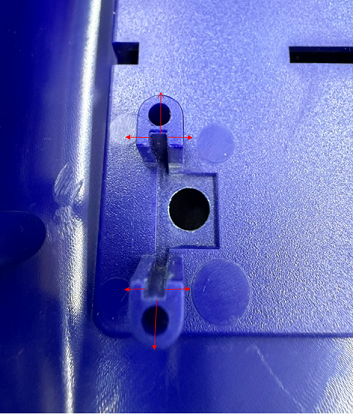

reduce plastic by 1mm along arrow directions

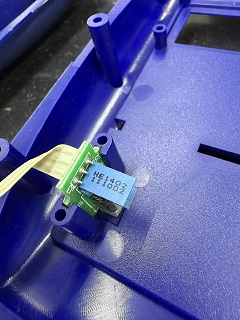

-The slot of small circuit board enters: the board can not go in fully
reduce plastic 0.1mm along arrow directions and Dia. 6mm hole is widened 0.1mm more bigger
